Transitioning from the Micron 2550 Series to the Micron 2650 Series

Posted by Nicole Liantonio on March 13, 2025 at 11:00 AM

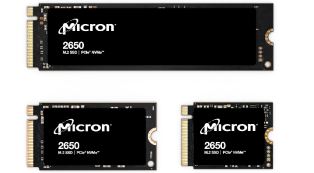

Micron 2650 NVMe SSDMicron has announced that the Micron 2550 NVMe SSD will be going end-of-life (EOL) and its replacement drive is the Micron 2650 NVMe SSD.

The Micron 2650 enables exceptional performance and excellent user experience for client applications.

This series is available in the M.2 form factor with size options of 22x30mm, 22x42mm, and 22x80mm. The Micron 2650 also includes both Non-SED and TCG Opal security options to meet various data protection requirements.



Micron 2650 NVMe SSD Product Brief



Features & Benefits of the Micron 2650 SSD

  • Ninth-generation (G9) 3D NAND technology
  • Up to 7,000 MB/s sequential read speeds
  • Industry-leading six-plane TLC NAND for improved performance
  • Enhanced power efficiency and thermal management



Micron 2550 vs Micron 2650 Comparison

Feature Micron 2550 Micron 2650
NAND Type Previous Gen 3D NAND 9th-Gen 3D NAND
Max Sequential Read 5,000 MB/s 7,000 MB/s
Max Sequential Write 5,000 MB/s 6,000 MB/s
Random Read IOPS 550K Read / 600K Write 1,000 KIOPS
Random Write IOPS 550K Read / 600K Write 1,000 KIOPS
Endurance (TBW) Up to 600 TB Up to 600 KB
Form Factors M.2 22x30, 22x42, 22x80 M.2 22x30, 22x42, 22x80
Interface PCIe Gen4 NVMe 1.4 PCIe Gen4 NVMe 1.4c
Security Features Standard Encryption

AES 256-bit Encryption, TCG Opal/Pyrite



FAQ with Edge's FAE, Keith Peterson

Our Micron FAE, Keith Peterson, answers a few of the most asked questions regarding the transition process from the Micron 2550 SSD to the new Micron 2650 SSD.

Q: What is the primary difference between the going-obsolete Micron 2550 moving to the replacement Micron 2650?

A: The Micron 2550 used the legacy Eighth-Generation (G8) from Micron. However, Micron is the first to ship the industry's Ninth-Generation (G9) 3D NAND in a production SSD. This innovative G9 NAND helps ensure that the Micron 2650 SSD provides a best-in-class user experience for everyday computing with performance that beats competitive client SSDs.

Q: Are there any performance benefits transitioning from the Micron 2550 to the Micron 2650?

A: Yes, even though the Micron 2650 and 2550 are both PCIe Gen4 NVMe Solid State Drives, the Micron 2650 SSD reaches up to 7,000 MB/s read speed vs 5,000 MB/s in the previous generation to meet your everyday computing needs. The Micron 2650 offers class-leading performance, including:

  • Up to 70% better sequential read
  • Up to 103% better sequential write
  • Up to 156% better random read
  • Up to 85% better random write



Micron 2550 to 2650 Part Number Conversions

Micron 2550 Micron 2650 Form Factor Capacity Security
MTFDKBK256TGE-1BL1AABYY MTFDKBK256TGW-1BP1AABYY M.2 (22X30mm) 256GB

Non-SED TCG Pyrite

MTFDKBK256TGE-1BL15ABYY MTFDKBK256TGW-1BP15ABYY M.2 (22x30mm) 256GB SED TCG Opal
MTFDKBA256TGE-1BL1AABYY  MTFDKBA256TGW-1BP1AABYY M.2 (22x80mm) 256GB Non-SED TCG Pyrite
MTFDKBA256TGE-1BL15ABYY MTFDKBA256TGW-1BP15ABYY M.2 (22x80mm) 256GB SED TCG Opal
MTFDKBK512TGE-1BK1AABYY   MTFDKBK512TGW-1BP1AABYY M.2 (22x30mm) 512GB Non-SED TCG Pyrite
MTFDKBK512TGE-1BK15ABYY    MTFDKBK512TGW-1BP15ABYY M.2 (22x30mm) 512GB SED TCG Opal
MTFDKBA512TGE-1BK1AABYY   MTFDKBA512TGW-1BP1AABYY M.2 (22x80mm) 512GB

Non-SED TCG Pyrite

MTFDKBA512TGE-1BK15ABYY    MTFDKBA512TGW-1BP15ABYY

M.2 (22x80mm)

512GB

SED TCG Opal

MTFDKBK1T0TGE-1BK1AABYY    MTFDKBK1T0TGW-1BP1AABYY M.2 (22x30mm) 1TB Non-SED TCG Pyrite
MTFDKBK1T0TGE-1BK15ABYY    MTFDKBK1T0TGW-1BP15ABYY M.2 (22x30mm)

1TB

SED TCG Opal
MTFDKBA1T0TGE-1BK1AABYY    MTFDKBA1T0TGW-1BP1AABYY M.2 (22x80mm)

1TB

Non-SED TCG Pyrite
MTFDKBA1T0TGE-1BK15ABYY    MTFDKBA1T0TGW-1BP15ABYY M.2 (22x80mm) 1TB SED TCG Opal



Looking to upgrade to the new Micron 2650 NVMe SSD?

Reach out to us for expert recommendations based on your project's specific needs.
